Description

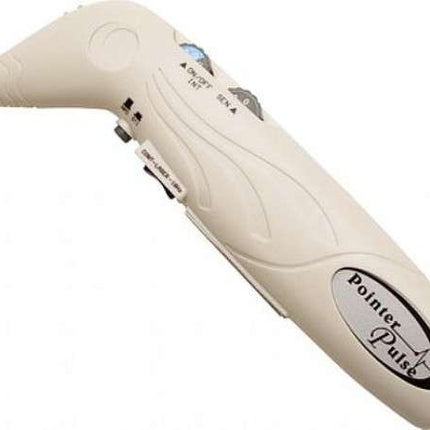

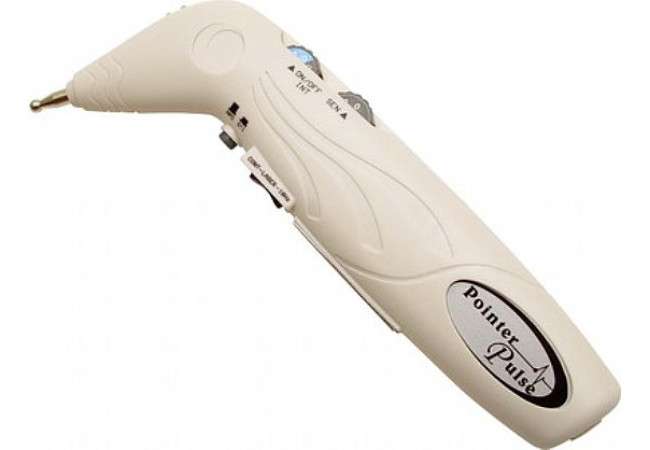

Pointer Pulse - Combination of acupuncture laser and TENS unit as well as an integrated point search function
The Pointer Pulse is the next generation of portable locator/stimulators! The Pointer Pulse is the first all-in-one device that combines laser therapy with electrical stimulation so that both treatment methods can be used simultaneously or separately.
The device measures the relative skin resistance at the treatment site using sound as well as a green light indicator on the top of the device. The location dependency and the sound level are adjustable. The devices make it possible to locate acupuncture points and treat them directly using laser (LLLT) or electrical stimulation (TENS).
Effective, push-button adjustable stimulation enables immediate treatment. Based on the setting of the output selector switch, either a milliamp or microamp current output is generated (i.e. the blue zone on the dial is milliamp).
Laser therapy is performed with a 650 nm, 5 mW laser in the device. Three treatment modes are available and can be selected via a toggle switch between the grounding plate and stimulation button: on (continuous laser beam), pulsed (10 Hz pulsed laser beam) and off (no laser beam). The device is successfully in laser mode when the yellow indicator light on the top of the device is illuminated.
With its ergonomic design and single grounding plate, this device can be operated with either the left or right hand. The probe tip is removable for easy cleaning. Accessories include a hand-held mass pole with attached cable, a 9-volt battery, a small screwdriver (for adjusting the sound level), a carrying case and instructions. This device is guaranteed for 1 year.
- The sensitivity of the measurement (up to 500 Ohm resistance) can be adjusted for pinpointing.
- T.E.N.S. stimulation (2 45 mA / pulse 10 Hz) or laser stimulation (650 nm/5 mW)
- Spring-loaded probe tips
Technical product features:
- Power supply: 9V battery
- Size: 210 x 45 85 x 24 mm
- Weight: 100 g
Laser stimulation:
- Wavelength: 650 nm
- Power: 5 mW
- Continuous beam (cw)
T.E.N.S stimulation:
- Output current: 2 45 mA
- Frequency response: 10Hz (variable) 20%
- Pulse width: 260 s (variable) 20%
Scope of delivery:
1 piece/VE, without battery
